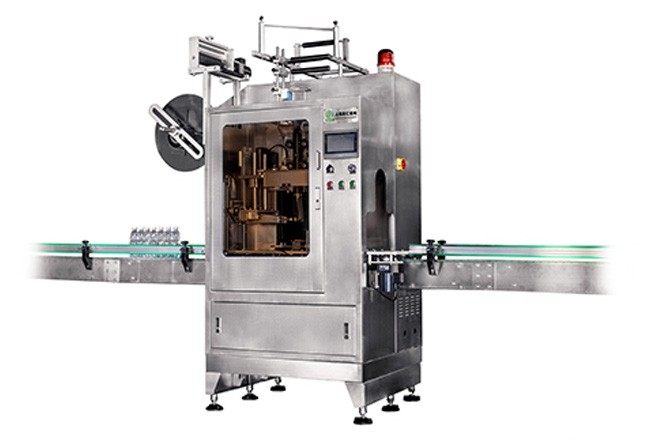

Built for health supplement & pharmaceutical bottle packaging. Smooth sleeve application, tamper-evident finish & easy changeover between formats.
Application
Feature
1. Purpose-built for health supplement and pharmaceutical bottle packaging, applying tamper-evident shrink sleeves to vitamins, capsules, syrups, and OTC drug containers.
2. Supports GMP-compliant production environments with smooth, contamination-free sleeve application suitable for regulated packaging lines.
3. Handles a wide range of bottle diameters and heights with minimal manual adjustment, reducing changeover time between product runs.
4. PLC touch screen control allows operators to store and recall labeling parameters for different supplement and pharmaceutical bottle formats.
5. Delivers a secure, full-body sleeve wrap that enhances product protection, brand presentation, and consumer confidence on retail shelves.
Parameters
| Model | SRL-850 |
| Speed | MAX 100-350BPM |
| Main machine size | 900*760*1600 L*W*H (mm) |
| Machine body & weight | Stainless steel 304, 400kgs around |
| Electric power | AC3-PHASE 220V/380V |
| Input power of machine | 3.5 KW |
| Applicable diameter of bottle | Φ25mm - Φ125mm |
| Bottle height | Max 350mm, special can be designed |
| Height of shrink label | 25mm~280mm, special can be designed |
| Thickness of shrink label | 0.035mm~0.13mm (PVC, PET, OPS) |
