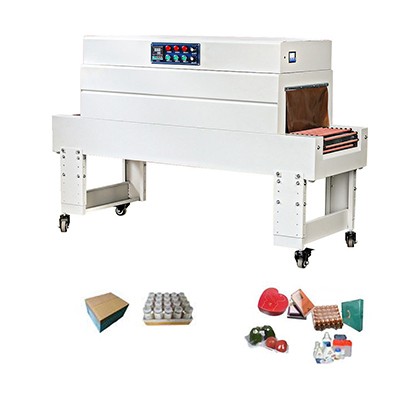

The SR-A100 Heat Shrink Tunnel Machine is a compact, high-efficiency unit designed for small to medium-scale packaging lines. Featuring rapid warm-up times and an optimized airflow system, it delivers wrinkle-free shrinking for diverse products like cosmetics, software boxes, and food trays.
Feature
1. Dual-Mode Airflow System: Switchable horizontal and vertical air circulation patterns adapt to specific product geometries, eliminating shadow zones and ensuring 360° film contraction.
2. Smart Energy-Saving Mode: An intelligent idle detection sensor automatically reduces heating power when no products are on the conveyor, cutting energy costs by up to 30%.

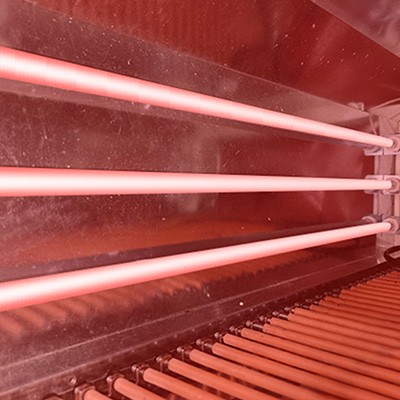

3. Tool-Free Maintenance Access: Hinged side panels and a modular heating element design allow for rapid cleaning and part replacement without specialized tools, minimizing downtime.
4. Real-Time Fault Diagnostics: An integrated LED diagnostic panel instantly identifies issues such as fan failure or sensor errors, simplifying troubleshooting for operators.
5. Low-Noise Operation: Equipped with precision-balanced, sound-dampened blowers that maintain high airflow while significantly reducing operational noise levels.
6. Anti-Static Integration: Built-in static elimination bars prevent film cling and dust attraction during the shrinking process, ensuring a pristine final package appearance.
Parameters
| Product No | SR-A100 |
| Power supply voltage (V-Hz) | 220V-380V 50HZ |
| Power(KW) | 11KW |
| Shrinkage Size (L × W × H） | 1200x500x300mm |
| Product size (W × H） | 300x220mm |
| Conveying speed (M/min) | 0-15 M/min |
| Conveying material | Mesh belt, chain rod, Teflon |
| Conveying capacity (KG) | 15KG MAX |
| Machine size (L × W × H） | 1600*660*1290mm |
| Total weight (KG) | 90KG |
| Using shrink film | POF/PVC |
