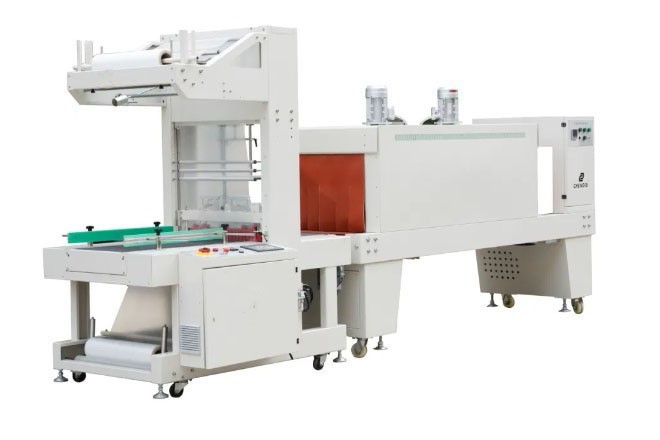

Efficiently bundle multi-packs and full cases with our shrink wrapping machine. Delivers tight, secure seals for stable pallet loads and retail-ready groups.
Feature
1. High-Speed Case Handling: Engineered for rapid throughput of full-case loads and multi-packs without jamming.

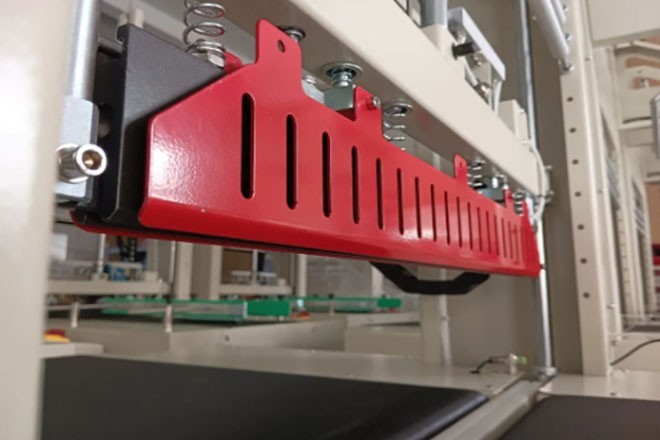

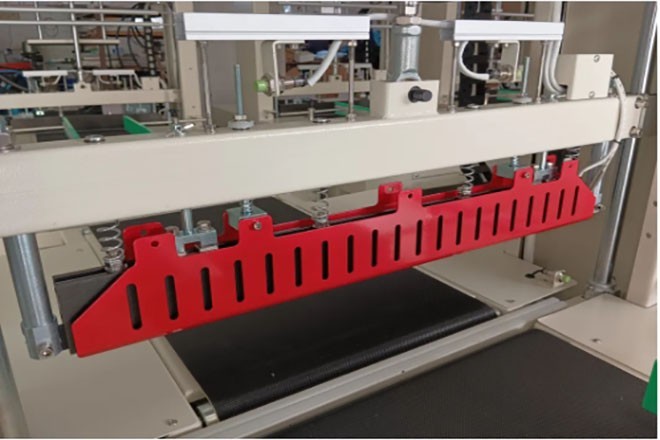

2. Adjustable Seal Bar: Accommodates varying case heights and widths for versatile production runs.
3. Energy-Efficient Tunnel: Optimized heat distribution ensures tight shrinking while minimizing power consumption.
4. Robust Frame Construction: Built with heavy-duty steel to withstand continuous industrial operation.

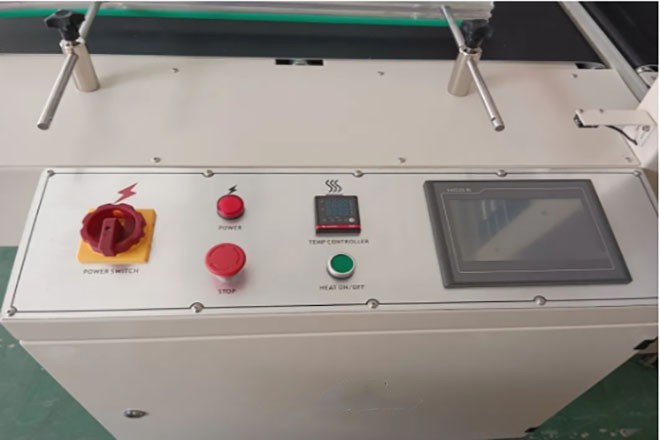

5. Smart PLC Control: User-friendly interface for precise temperature and speed adjustments.
| Model | SRW-500 |
| Power Supply | AC 380V 3PH 50/60Hz |
| Power | 1.8KW |
| Max. Packing Size | (W)≤450mm;(H)≤380mm |
| Sealing Size | (W)650mm |
| Table Height | 800mm |
| Packing Speed | 10-15pcs/min(Decide on product size) |
| Air Source | 6kgf/cm2 |
| Shrink Film | PE |
| Film Size | (W)≤550mm;(D)≤250mm;(G)≤35KG |
| Sealing Type | Sleeve type |
| Machine Size | L1700×W1100×H2030mm |
| Package size | L1830×W1220×H2200mm |
| G./N. Weight | 450kg |
