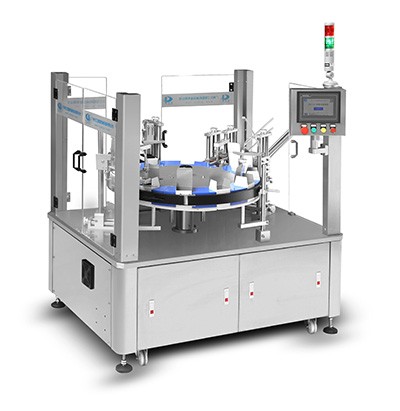

This multifunctional vertical box filling machine is engineered for high efficiency packaging across diverse industries.
Application
Round bottled medicine, food-stuff, cosmetic, etc. packing into square box.
Feature
1. It is specially design to pack small quantities multi size box.
2. With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mould.
3. 304 stainless steel case
4. Advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel , can easily set and change the packing parameters.
OPTION
Leaflet Inserting , Hot Glue, Hot Ribbon Date Code Embossed date Code
Parameters
| Model | SRZ-150 |
| Production speed | 20-50 boxes/minute |
| Paper box's largest size | 200 x 120 x 120mm |
| Paper box's smallest size | 60 x 20 x 20 mm |
| Paper quality of carton | 250-350g/m3 |
| Motor horsepower | 1/4HP 15:1 1.5KW/H |
| Power supply | 220V 50/60HZ single phase |
| Machine noise | ≤80dB |
| Gas source | 0.5-0.8 Mpa |
| Compress air consumption | 260L/min |
| Machine measurement | L 1100 x W 1500 x H 1450 mm |
| Machine weight | 450Kg |
