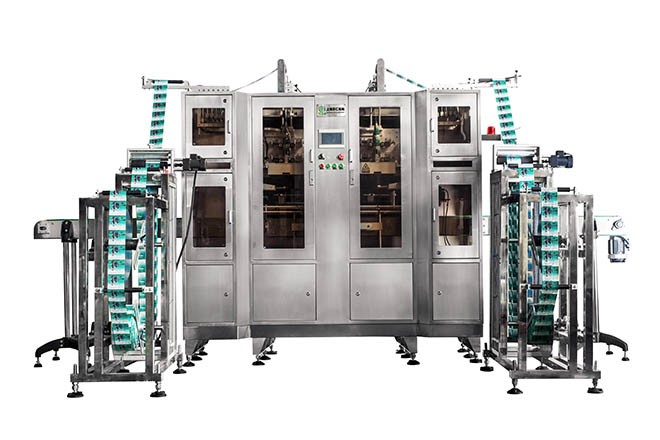

Working Principle of The Dual Head Shrink Sleeve Label Applicator

In the highly competitive landscape of modern packaging, the demand for high-speed, precision labeling has driven significant engineering advancements. Among the most impactful innovations is the dual head shrink sleeve label applicator. While single-head systems have long been the industry standard, the dual head configuration introduces a complex, synchronized mechanical ballet designed to maximize throughput and operational flexibility. Understanding the working principle of this sophisticated machinery reveals how it achieves seamless, high-volume production across industries such as beverages, pharmaceuticals, and personal care.

Synchronized Dual-Head Architecture

At the core of the dual head shrink sleeve label applicator is its unique ability to operate two independent, synchronous sleeve inserting heads. Unlike traditional systems that process a single label stream, this architecture allows the machine to function in multiple modes: as a dual-head system for maximum speed, or as two separate single heads. This flexibility enables manufacturers to apply both body and neck sleeves simultaneously, or to process two different product lines on a single conveyor. When one side requires a label roll replenishment, the system can seamlessly switch to single-head mode, ensuring non-stop production and eliminating costly downtime.

Precision Film Feeding and Cutting Mechanism

The labeling process begins with the unwinding of the shrink sleeve film, typically made from materials like PVC, PET, or OPS. The film is fed through a motorized unwinder system equipped with a dancer arm to maintain consistent tension. As the film advances, it passes through a specialized cutting unit featuring a modular rotary cutter with double-sided cutting edges. Guided by a single positioning center pillar, the film is cut to exact lengths with high precision. Advanced electric eye sensors work in tandem with the cutting mechanism to detect printed graphics, ensuring that every sleeve is cut at the correct orientation and position.

Automated Sleeve Application and Container Handling

Once cut, the sleeve is opened and formed into a cylindrical shape around a mandrel. The dual head system then utilizes servo-driven mechanical arms to lower the sleeves onto the containers. A fully synchronized feed screw and bottle divider ensure that containers are evenly spaced and stabilized on the conveyor, preventing shaking or misalignment during the high-speed application process. The machine’s PLC-based control system coordinates the timing between the bottle movement and the sleeve dispensing unit, guaranteeing that each label is placed with millimeter-level accuracy, regardless of the container’s shape or size.

Integrated Shrinking and Quality Assurance

After the sleeves are applied, the containers are conveyed into a heat shrink tunnel, which can be either steam-based or electric. The tunnel utilizes recirculating hot air or steam to activate the shrink properties of the film, causing it to conform tightly to the container’s contours. This process ensures a wrinkle-free, tamper-evident seal that enhances both product security and visual appeal. Throughout the entire cycle, the machine’s advanced control system monitors performance in real-time, filtering out signal interference and automatically rejecting any mislabeled units. This end-to-end integration of mechanical precision and digital control defines the working principle of the dual head shrink sleeve label applicator, setting a new benchmark for efficiency in industrial packaging.
