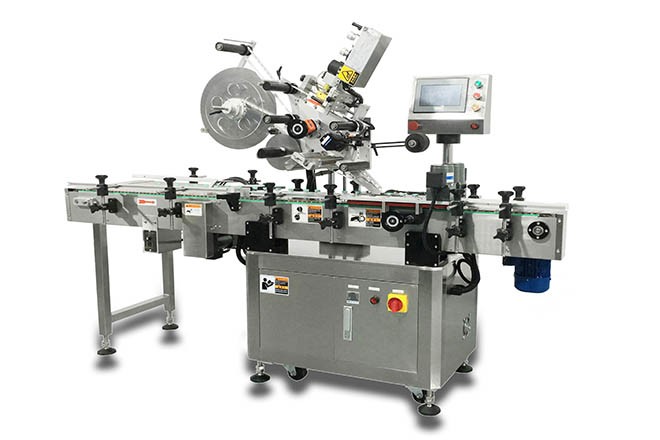

Flat Surface Labeling Machine

The machine adopts 304 stainless steel and aluminum alloy material, durable.

The whole machine adopts imported servo control system, make the machine running on the stable and high speed.

Advanced affinity touch human-machine interface, easy operation, complete function, has the rich online help function.

Use of the world’s famous brands imported electrical components, ensure that the machine is stable, reliable.

The belt conveyor, stable, reliable guarantee the delivery of materials.

Conveying and automatic labeling speed synchronous tracking, make the adjustment is more quick and easy operation.

Automatic sensor detection, to have any label and without the automatic stop and alarm automatic detection function, prevent leakage and waste.

Before and after Duan Kexuan connection line, also have optional receiving platform, is advantageous for the finished product collection, sorting and packing.

Optional configuration (ribbon printer) can print production date and batch number online, reduce the bottle packaging process, improve production efficiency.


Labeling capacity (pcs/min)40-200 Bottles/min
Labeling accuracy (mm)±1.0
label size (mm)(L) 20-300 (H) 10-140
Material size (mm)Ø30-Ø100 (H) 20-200
Material size (mm)Ø76mm
Roll outerside diameter (mm)MAXØ350mm
Machine size (mm)(L)2000*(W)900*(H)1500
Power supplyAC220V 50Hz/60Hz 1200W
