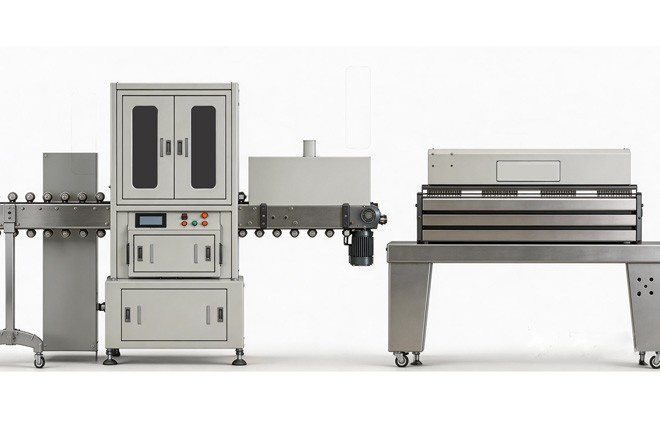

SRL-H80 Horizontal Shrink Sleeve Labeling Machine

The SRL-H80 horizontal shrink sleeve labeling machine adopts the integrated design of heat shrinkage. Its excellent high-speed and stable performance, unique dexterous design, and the safety mode of man-machine harmony have been fully affirmed by the majority of customers, and the equipment covers a small area. It is mainly used in the standard packaging of eyebrow pencil, lipstick, eyeliner, mascara, foundation, essence, freeze-dried powder and other products.

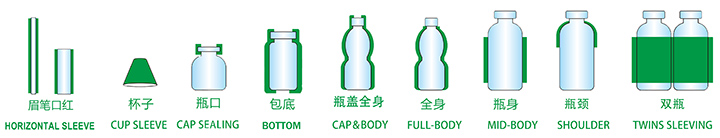

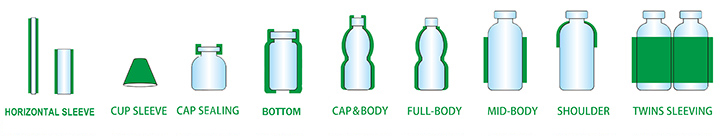

Application

Feature

Precision Cutting & Application:

Equipped with high-accuracy servo motors for film feeding.

Advanced cutting mechanisms (rotary knife or stationary blade) ensure clean, burr-free cuts at high speeds.

Optional vision inspection systems to detect label position and cut quality.

Versatile Compatibility: Handles various film materials including PVC, PETG, OPS, and PLA (eco-friendly options).

Integrated or Inline Shrink Tunnel: Often paired with a steam or hot air shrink tunnel immediately after application to ensure tight, wrinkle-free shrinking without distorting the container.

User-Friendly HMI Control: Features a PLC-controlled touchscreen interface for easy parameter setting, fault diagnosis, and production data tracking.

Quick Changeover: Modular design allows for rapid adjustment to different bottle sizes and label lengths with minimal downtime.

Safety & Stability: Constructed with stainless steel (SUS304), featuring safety guards, emergency stops, and low-noise operation suitable for GMP environments.

These features make the machine ideal for manufacturers seeking high efficiency, precise branding, and flexible packaging solutions.

Parameters

Label length	50～350mm
Capacity	1500 pcs/h
Label Material	PVC/PET/OPS
Label Thickness	0.04～0.13mm
Marking Accuracy	Label perimeter ≤ Product perimeter 4mm
Product qualification rate	99.9%
Label Notch straightness	±0.1mm
Label shrinkage deformation	±0.5mm
Machine Size	4000×1600×1700mm
Equipment weight	750kg
Power supply	3 Phase 380V 50/60HZ （Customizable）
Total power	15kw
