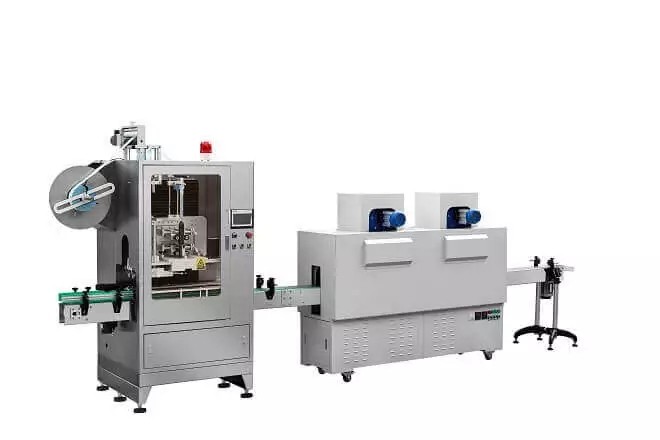

SRL-100 SHRINK SLEEVE LABELING MACHINE

WhatsApp: +8613482266656

Email Us: wendy.jiang@sr-packing.com

Feature

Novel design up to market demands.

Precise coordination between mechanisms and easy switch from one bottle size to another.

Durable frame made of stainless steel and separate design, ensuring stable working performance.

Wearing parts imported from well-known manufactures, ensuring long working life and minimum working stop.

TASI PLC from Taiwan and HMI control technology adopted and with precise coordination between servo motor and high-sensitivity sensor, mechanical structure is optimized and sleeving accuracy and efficiency are improved.

Floor rack, ensuring easy label change, controlled transmission tension and smooth label feeding.

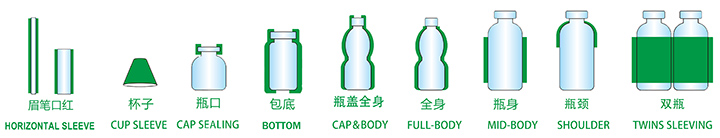

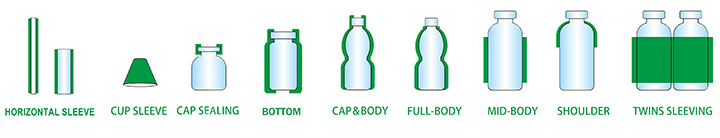

Two sleeving positions can be realized with one head sleeving the bottle body and the other the bottle cap.

Maximum speed up to 800BPM with both heads working; maximum speed up to 600BPM with one head working when the other is under maintenance.

Parameters

ModelSRL-100
SpeedMAX 100BPM
Main machine size2000*860*1800 L*W*H (mm)
Machine body & weightStainless steel 304, 1200kgs around
Electric powerAC3-PHASE 220V/380V
Input power of machine7 KW
Applicable diameter of bottleΦ25mm - Φ125mm
Bottle heightMax 350mm, special can be designed
Height of shrink label25mm~280mm, special can be designed
Thickness of shrink label0.035mm~0.13mm (PVC, PET, OPS)
