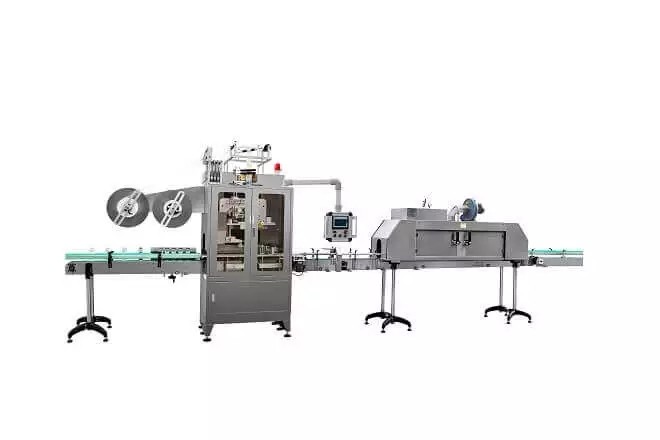

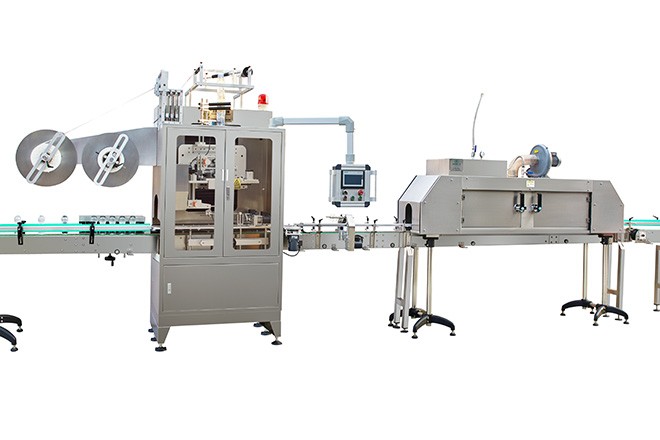

SRL-450 SHRINK SLEEVE LABELING MACHINE

WhatsApp: +8613482266656

Email Us: wendy.jiang@sr-packing.com

Application

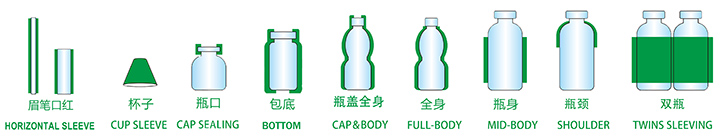

Sleeve Application Diagram

Feature

The Machine can be set up online with a production line.

The colorful human/machine interface controller ensures user-friendly operations.

Specially designed knife plate is change-free within the rated specifications. If needed, the knife plate can be changed in just three minutes.

Specification change is fast and convenient done by a simple adjustment.

Accommodates film paper core sizes of 5" 10" with variable adjustment.

Forced insertion design provides high economy. Minimum film thickness is 0.035mm.

Integrated adjustments for the entire transmission mechanism give maximum convenience for label specification variation.

Suitable for square and round bottles requiring a simple setup only.

The machine can be tilted to facilitate label insertion for straight bottles without mouth.

Parameters

ModelSRL-450
SpeedMAX 450BPM
Main machine size1000*860*1800 L*W*H (mm)
Machine body & weightStainless steel 304, 650kgs around
Electric powerAC3-PHASE 220V/380V
Input power of machine4.5 KW
Applicable diameter of bottleΦ25mm - Φ125mm
Bottle heightMax 350mm, special can be designed
Height of shrink label25mm~280mm, special can be designed
Thickness of shrink label0.035mm~0.13mm (PVC, PET, OPS)
