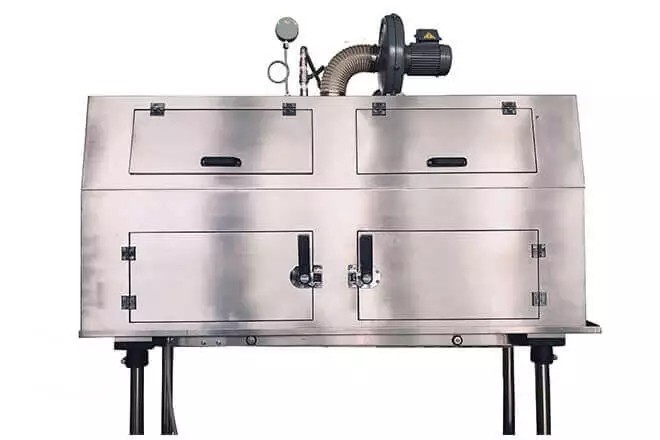

Steam Shrink Sleeve Tunnel High Speed Production Integration

The pursuit of higher throughput in the beverage and consumer packaged goods sectors has pushed packaging lines to operate at speeds that were previously unattainable with conventional heating technologies. As production velocities climb beyond 1,200 containers per minute, the thermal processing stage often becomes the primary bottleneck. The integration of a steam shrink sleeve tunnel into these high speed environments represents a fundamental shift in engineering philosophy, moving away from brute force heat application toward a sophisticated, fluid dynamic approach to film activation. This transition is not merely about increasing temperature but about achieving instantaneous and uniform heat transfer that keeps pace with rapid container movement while preserving the structural integrity of lightweight packaging.

Overcoming Thermal Inertia at Elevated Line Speeds

In traditional hot air systems, heat transfer relies on convection, which requires time for heated air to penetrate the boundary layer of air surrounding a moving container. At high line speeds, this dwell time is drastically reduced, often resulting in insufficient shrinking or the need for excessively long tunnels that consume valuable factory floor space. Steam shrink tunnels address this limitation through the physics of condensation. When saturated steam comes into contact with the cooler surface of a labeled container, it condenses instantly, releasing its latent heat of vaporization directly onto the film. This phase change transfers energy approximately five times faster than convective hot air, allowing the sleeve to reach its activation temperature almost immediately upon entering the tunnel. This rapid energy delivery enables manufacturers to maintain consistent shrink quality even as conveyor speeds increase, effectively decoupling production throughput from the physical length of the heating chamber.

Precision Zoning for Complex Container Geometries

High speed production lines frequently handle a diverse mix of container shapes, including ergonomic bottles with deep recesses, square profiles, and tapered necks. Achieving a wrinkle-free finish on these complex geometries requires more than just raw heat; it demands precise directional control. Advanced steam tunnels are engineered with independent zoning capabilities that allow operators to modulate steam flow to specific areas of the tunnel cross section. By adjusting nozzles along the top, bottom, and sides, the system can direct higher volumes of steam toward difficult to reach areas, such as the base of a bottle or under the cap, while applying gentler heat to flat surfaces. This targeted approach prevents the film from shrinking prematurely in one area while lagging in another, a common issue that leads to distortion at high speeds. The ability to fine tune the thermal profile ensures that every container exiting the tunnel meets rigorous aesthetic standards, regardless of its shape or the speed at which it traveled through the heating zone.

Synergy with Upstream Sleeve Application Systems

The efficiency of a steam shrink tunnel is inextricably linked to the performance of the upstream sleeve applicator. In a high speed integrated line, the synchronization between the cutting drum of the applicator and the entry conveyor of the tunnel is critical. Modern systems utilize servo driven conveyors that act as a buffer, ensuring that containers enter the steam environment with precise spacing. If containers are too close together, they create a shadow effect that blocks steam from reaching the rear surfaces; if they are too far apart, energy is wasted heating empty space. Integrated control systems communicate in real time, adjusting the tunnel’s steam generation based on the actual flow of containers detected by sensors at the infeed. This dynamic modulation ensures that the steam curtain remains stable and effective, preventing pressure fluctuations that could disturb the position of freshly applied sleeves before they have set. This seamless handshake between application and shrinking minimizes waste and maximizes the overall equipment effectiveness of the entire packaging cell.
